3.5.5 Button Management

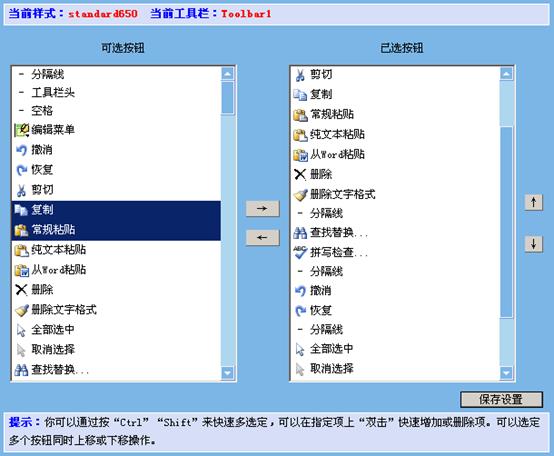

Click on "Button Management" on the toolbar management page, you will enter the button management page like the following:

On the navigation bar of the button management page, there are style name and toolbar name of the currently editing button. By observing this information, you can make sure of the current working object to avoid mistakes.

We can also find that there are two multi-row drop-down lists on the operating interface. The left one is the drop-down list for buttons to be selected and the right one is the drop-down list for selected buttons.
There are all optional functional buttons in the drop-down list for buttons to be selected including separating line and the head of toolbar etc.

There are all selected functional buttons in the selected drop-down list.

You can realize the function of select and cancel by clicking on the right and left arrowhead in the middle. To arrange the order of the selected buttons, you can click on the up and down arrowhead. The operational steps are listed as the following.

l   Select
At first, click on the functional button you want to select in the drop-down list of optional buttons, and then click on the "rightward arrowhead" button. At that time, the functional button you have just selected will emerge from the end of the selected list on the right.
You can also double click the option in the optional buttons list to complete this operation quickly.

l   Cancel
At first, click on the functional button you want to cancel in the right selected buttons list, and then click on the "leftward arrowhead" button, the selected functional button on the right will be deleted from the selected list.
You can also double click the option in the selected buttons list to complete this operation quickly.

l   Arrange order
At first, click on the option, in which you want to change order in the selected button list, and then click on the up and down arrowhead button to finish arrangement of the order.
Note: the upper the one in the list, the closer to left it will be displayed in actual displaying interface.

l   Save
After finishing setting the number of buttons and completing arranging their order in the selected buttons list according to your need, you should click on "save settings" button, and then the data will be saved in configuration files. All the above setting steps will not be saved if you do not clicking on "save settings" button.
After saving the settings, you can preview the effect by previewing function in the style management. If the effects are not perfect, you can enter the setting page again to achieve best effect.



Note: for the convenience for you to select the right functional buttons, we offer you a reference table of button icons and their names in this button management page.
